  • PARAMETER

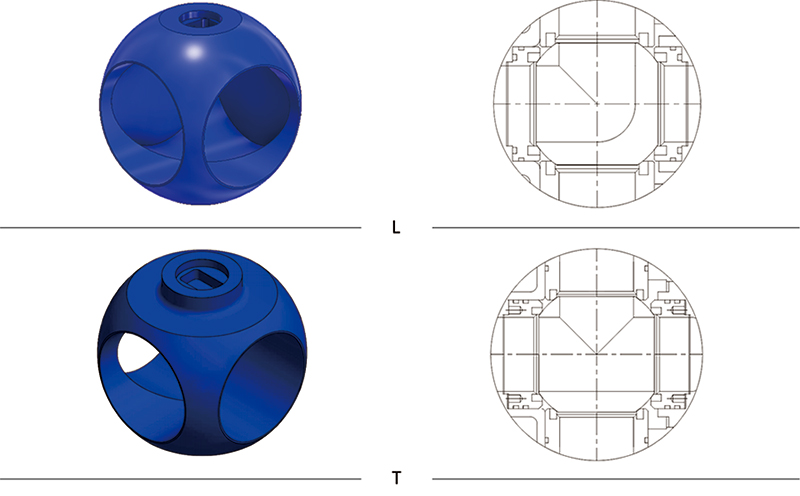

Three - way ball valves are T - shaped and L - shaped.T - shape can connect three orthogonal pipelines and cut off the third channel, playing the role of diversion and confluence.The l-shaped three-way ball valve can only connect two orthogonal pipes,and can't keep the third pipe connected at the same time.


Structural characteristics of

The company three - way ball valve all four - side seat structure, reliable sealing, light switch.



Flow to the combination

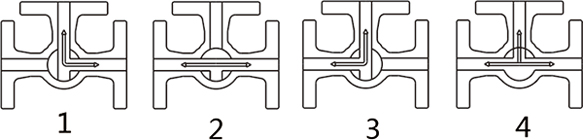

The t-shaped tee can realize any two or three combinations of the four flows.Two combinations can achieve 90 degree drive,

three combinations need to achieve three positions 180 degree rotation.

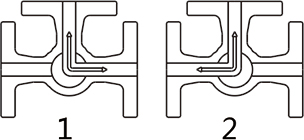

L three - way can only achieve two flow switching function.The driving device can achieve 90 degree rotation.

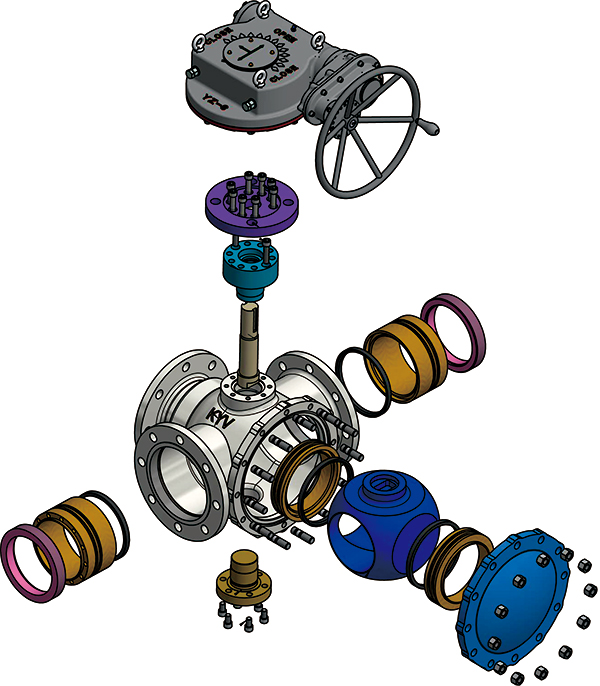

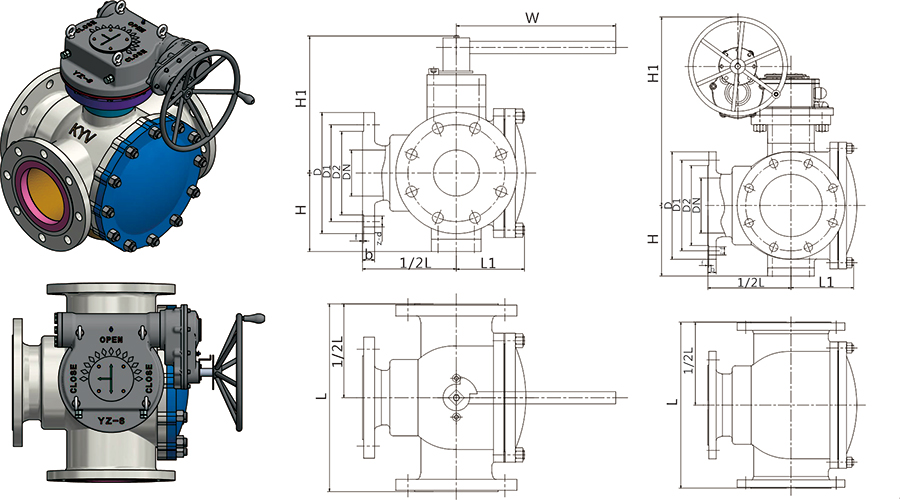

Cast steel tee ball valve structure


DN15-DN200(1/2"-8")

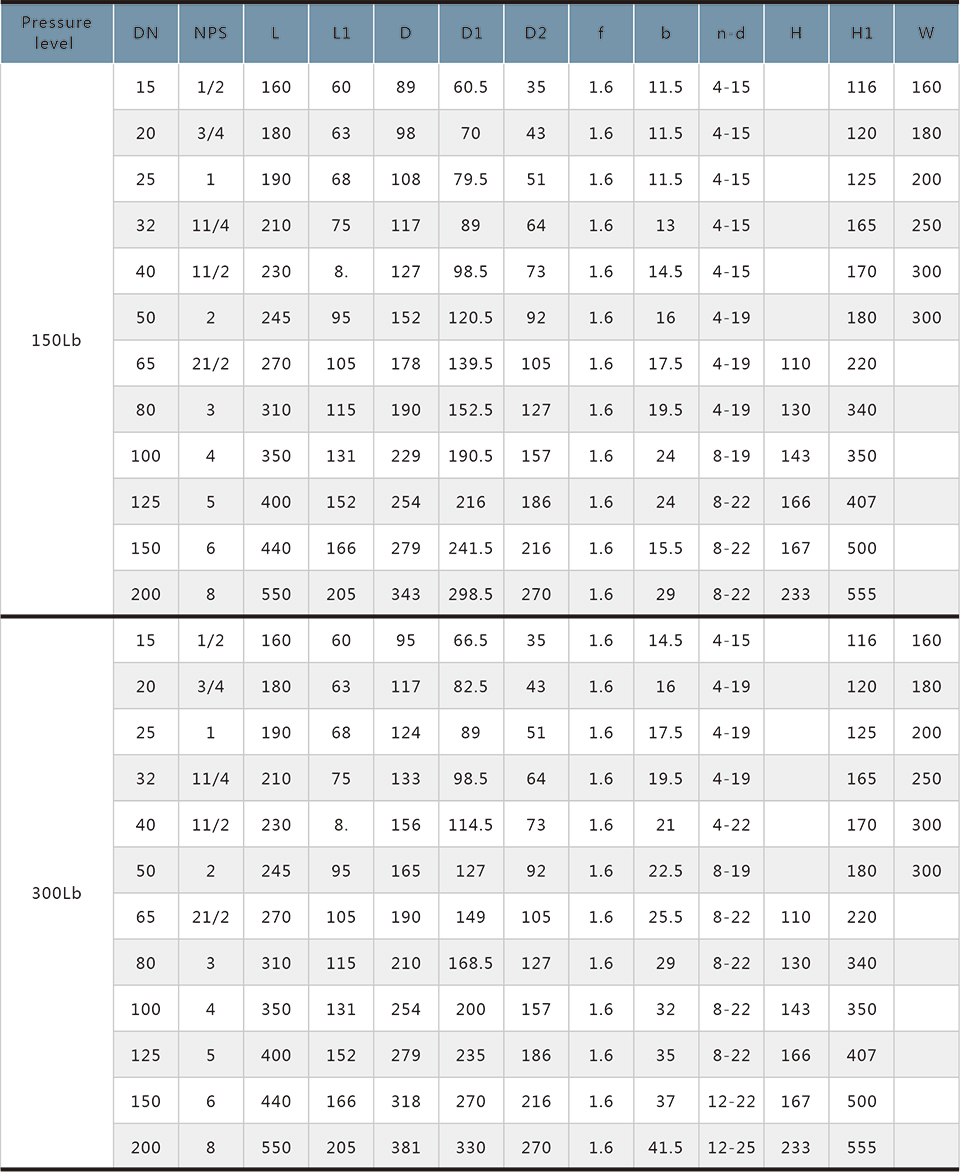

Shape and connection dimensions


API ANSI B16.5-RF

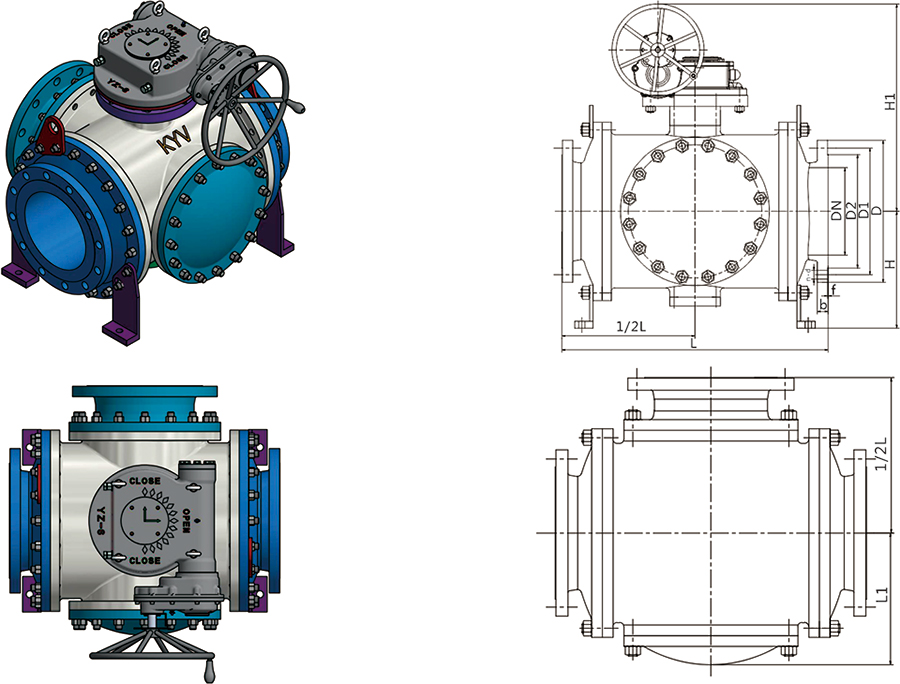

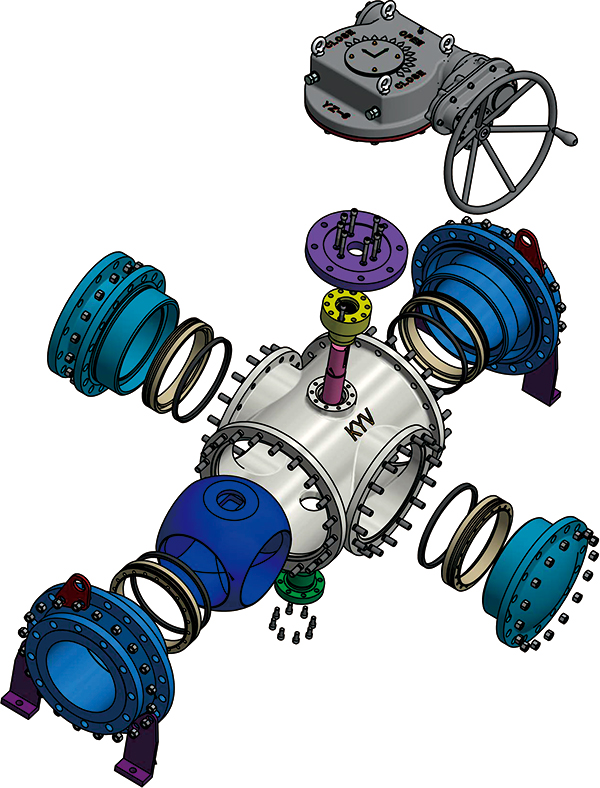

Cast steel tee ball valve structure

DN250-DN600(10"-24")

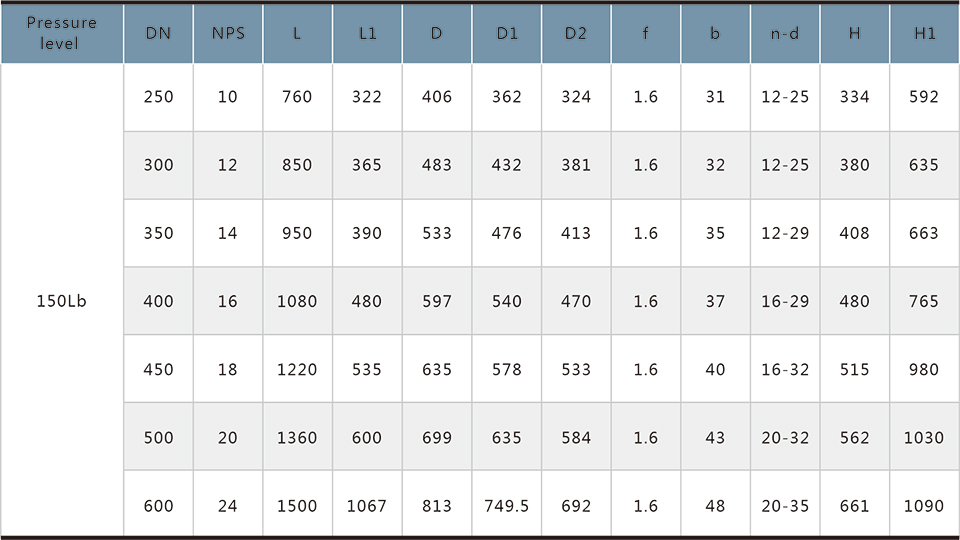

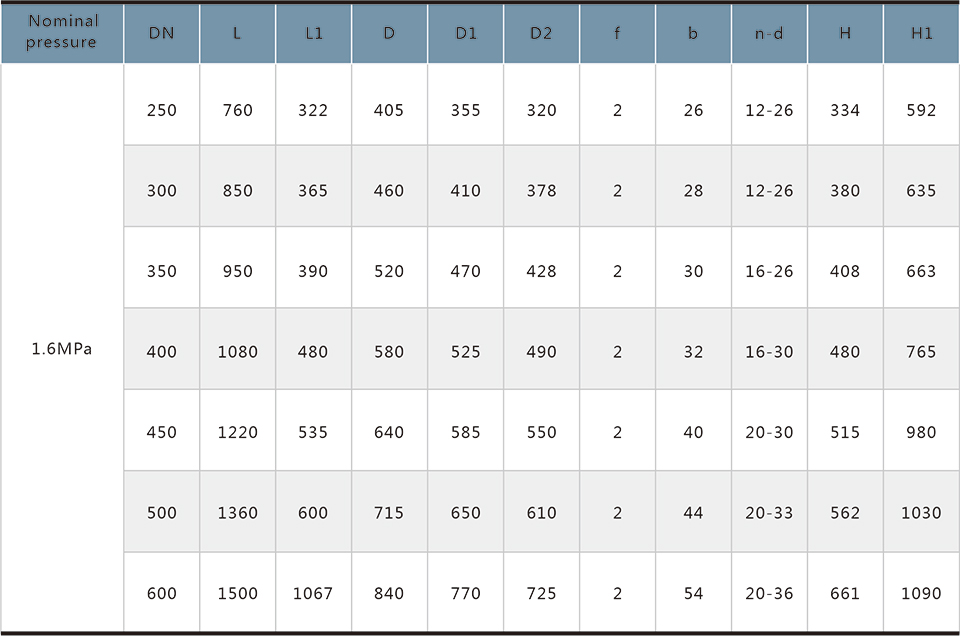

Shape and connection dimensions


GB HG20592-RF



API ANSI B16.5-RF
